Elitech Vacuum Pump V700/V900/V1200

Elitech Vacuum Pump V700/V900/V1200

Free Delivery & Shipping

The Elitech Vacuum Pump V700/V900/V1200 is designed for professional HVAC and refrigeration technicians who require fast, efficient, and reliable vacuum evacuation. Built for durability and high performance, these vacuum pumps help remove moisture and non-condensable gases from air conditioning and refrigeration systems, ensuring optimal system performance and longer equipment life. Their compact design and user-friendly features make them ideal for residential, commercial, and industrial HVAC/R applications.

Key Features

  • Intuitive 4-Inch Touch Display – Large touchscreen interface provides clear system information and simple operation for enhanced user convenience.
  • Innovative Top-Up Handle – Ergonomic handle design offers comfortable carrying and easy transportation between job sites.
  • High-Performance Operation – Engineered to deliver efficient vacuum performance for fast evacuation of HVAC and refrigeration systems.
  • USB Type-C Fast Charging – Supports modern Type-C charging for convenient and reliable power management.
  • Reverse Charging Function – Built-in reverse charging capability allows compatible devices to be powered directly from the unit when needed.
  • Compact & Durable Design – Rugged construction ensures reliable performance in demanding HVAC service environments while remaining easy to transport.
  • Ideal for HVAC/R Applications – Suitable for servicing air conditioners, refrigeration systems, VRF/VRV units, heat pumps, cold rooms, and commercial cooling equipment.
Category:
Guaranteed Safe Checkout

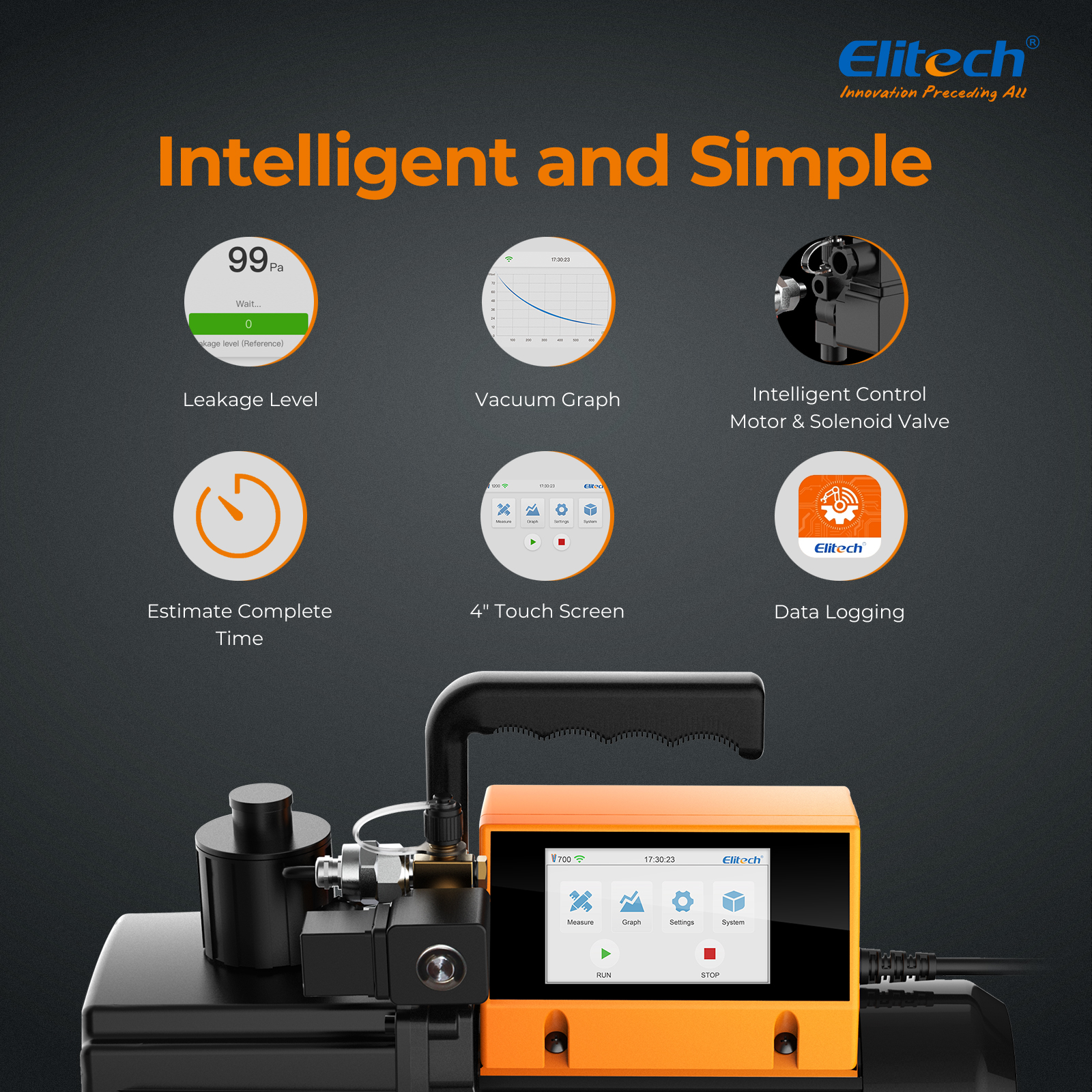

The process of vacuuming can be a little overwhelming for professionals of HVAC since they must be carefully aware of time and pressure of the vacuum, in additional to several tools that they may need it. Elitech has developed the intelligent V series vacuum pump. It is digital colorful touch screen device that you can have total control of the vacuum process with using your phone, it also displays real time graph of the vacuum process, leakage level and the time remaining to finish the job. Besides that, it counts with a built-in gauges, which make the need for extra tools unnecessary.

  • Intelligent Control of Motor and Solenoid Valve.
  • System Leakage Level Analysis.
  • Real-time Changes on Vacuum in Graph.
  • Estimated Job Competition Time.
  • 4″ Smart Touch Full-color Screen.

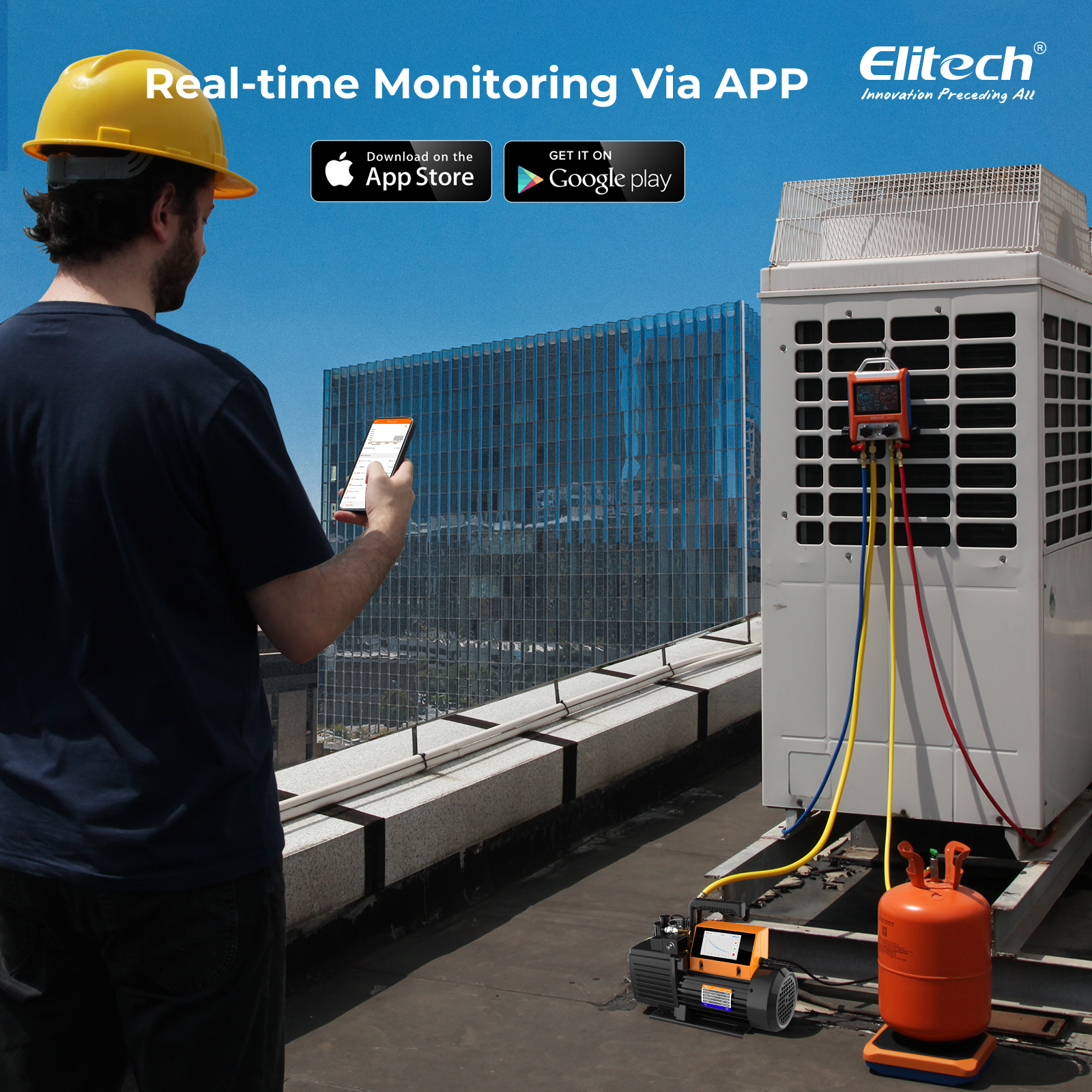

  • Data Monitoring and Analysis via App.

Specification:

Model/ParametersV700V900V1200
Stage
2 stages
Power Supply
110V-60HZ
Motor
AC induction motor
Speed regulation
Fixed speed
Vacuum Accuracy
1-10000microns ±10% of reading ±10microns
10000-19000microns ±20% of reading
Usage Environment
5°C~40°C/41°F~104°F
Transmission distance
30ft/10m
Limit Vacuum
15 micron
Pumping rate7CFM(3L/S)9CFM(4L/S)12CFM(5L/S)
Motor Power3/4hp/550w1hp/750w1hp/750w
Fuel Volume22oz/650ml22oz/650ml25.3oz/750ml
Overall Dimension
18.5in*10.5in*14.8in/470mm*267mm*380mm
Weight34.2lbs/14.8KG35.3lbs/15.3kg36.8lbs/16jg
Air inlet
1/4 SAE
