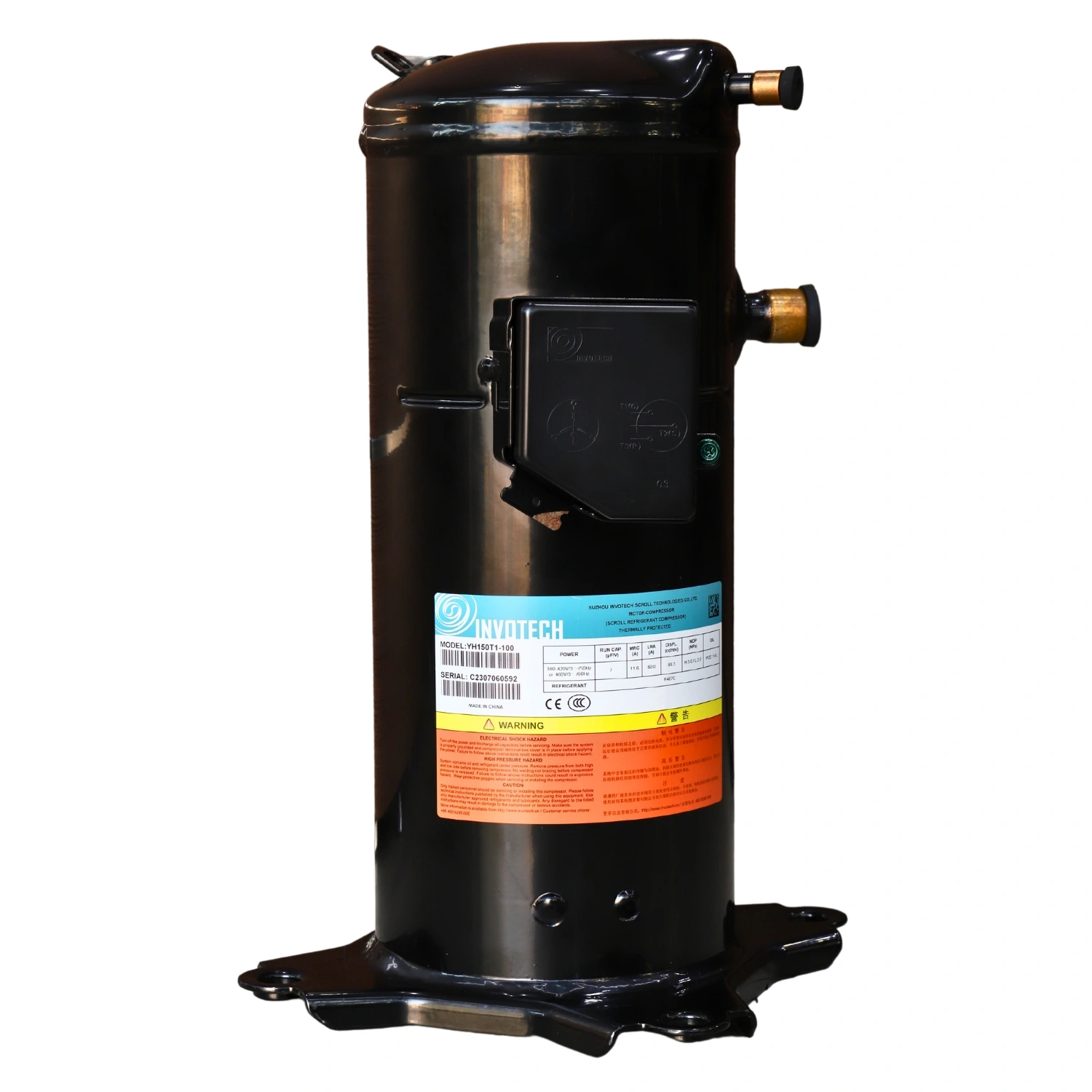

The Invotech YH150T1-100 Compressor is a 5 HP R407C refrigeration compressor designed for reliable cooling in commercial and industrial refrigeration systems. It operates at 380–420V, 3-phase, 50Hz and provides 14,400W cooling capacity with 14.5 m³/h displacement. Its efficient performance and POE oil compatibility make it suitable for demanding R407C refrigeration applications.
Features
- Brand: Invotech
- Model: YH150T1-100
- Refrigerant: R407C
- Power: 5 HP
- Voltage: 380–420V
- Phase: 3 Phase
- Frequency: 50Hz
- Displacement: 14.5 m³/h
- Cooling Capacity: 14,400W
- Power Consumption: 4,410W
- COP: 3.27 W/W
- Running Current: 8.4A
- MOC: 11.6A
- LRA: 60.0A
- Oil: POE 1.4L
- MOP: High 3.0 MPa / Low 2.0 MPa
- Suitable for compatible R407C refrigeration systems
- Designed for reliable commercial and industrial cooling
Applications
- Commercial refrigeration systems
- Industrial refrigeration equipment
- Cold rooms and refrigerated storage
- Commercial freezers
- Refrigeration condensing units
- Large cooling and refrigeration systems
- R407C-compatible refrigeration applications
